J.W. Winco

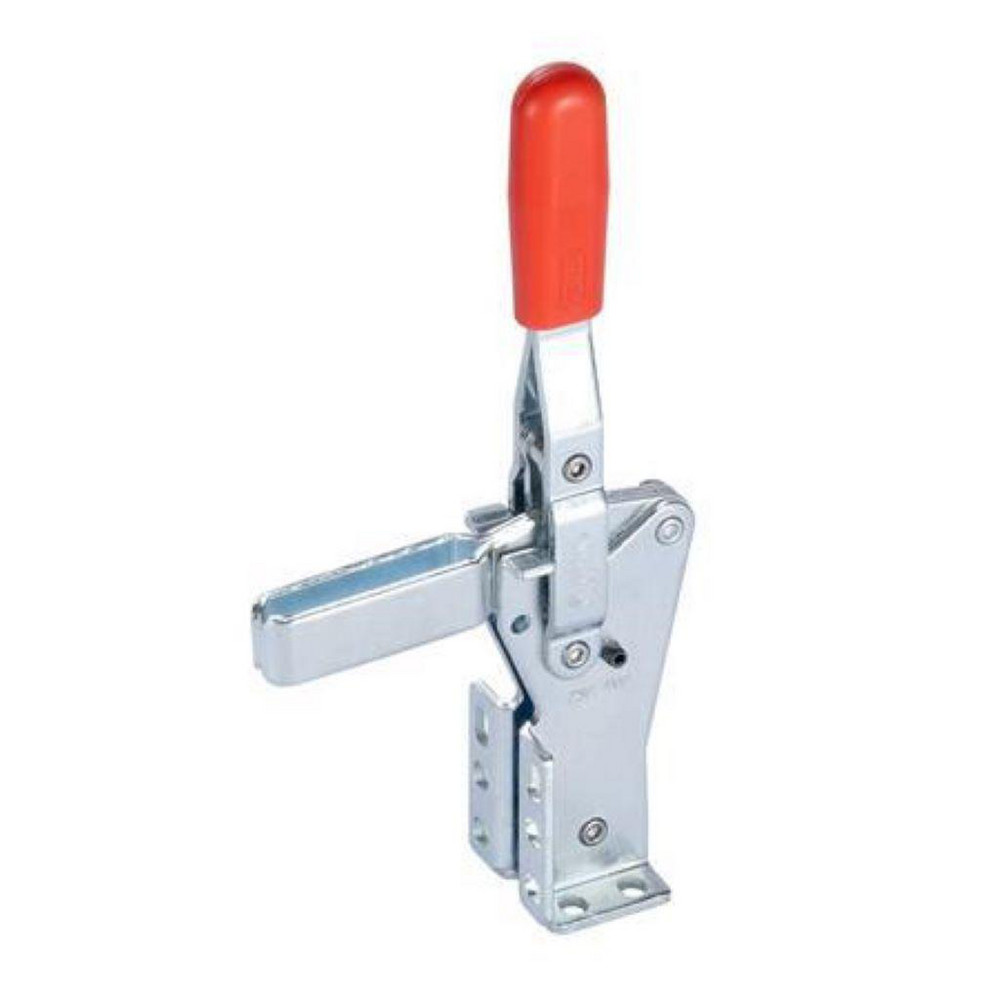

Manual Hold-Down Toggle Clamp: Vertical, U-Bar, Dual-Flanged Base-61 deg Handle Movement, 95 deg Bar Opening, Case-Hardened Steel C10
MSC # 52483690
Mfr # 812.1-75-AVF
Web Price
Save even more - Check out our
Clearance Specials
Product Image Feedback
Manual Hold-Down Toggle Clamp: Vertical, U-Bar, Dual-Flanged Base
61 deg Handle Movement, 95 deg Bar Opening, Case-Hardened Steel C10
J.W. Winco
Manual Hold-Down Toggle Clamp: Vertical, U-Bar, Dual-Flanged Base
61 deg Handle Movement, 95 deg Bar Opening, Case-Hardened Steel C10
MSC# 52483690
Mfr# 812.1-75-AVF
Specifications
| Handle Orientation | Vertical |
| Bar Style | U-Bar |
| Base Style | Dual-Flanged |
| Bar End Type | Fixed Spindle |
| Holding Capacity (N) | 750.00 |
Product Specifications Feedback
Sign In For Your Best Price
Ships from Supplier
Expected to ship within 2 Business Days
Lead times are estimates and may vary based on our suppliers product availability.
MSC # 52483690
|
Mfr # 812.1-75-AVF
Specifications
| Handle Orientation | Vertical |
| Bar Style | U-Bar |
| Base Style | Dual-Flanged |
| Bar End Type | Fixed Spindle |
| Holding Capacity (N) | 750.00 |
| Length Distance Between Mount Holes (mm) | 12.5 |
| Width Distance Between Mount Holes (mm) | 24.00 |
| Height Under Bar (mm) | 43.00 |
| Overall Length (mm) | 67.0000 |
| Overall Height (Decimal Inch) | 120.00000 |
| Base Length (mm) | 24.0000 |
| Base Width (mm) | 34.00 |
| Handle Style | Straight |
| Handle Material | Steel |
| Handle Color | Red |
| Spindle Included | No |
| Mounting Hole Diameter (mm) | 4.5 |
| Bar Opening (Degrees) | 95 |
| Handle Movement (Degrees) | 61 |
| Spindle Thread Size | M5x0.8 |
| Bar Width (mm) | 5.2 |
| Bar Thickness (mm) | 11.00 |
| UNSPSC Code | 31162902 |
| Handle Width (mm) | 16.00 |
| Includes | Horizontal Mount Base |
| Front of Base To Tip Of Toggle Bar (mm) | 37.00 |
| Number Of Mounting Holes | 10.000 |
| Finish Coating | Zinc-Plated Blue Passivated |
| Country of Origin | Italy |
|
|
| MSC Part # | 52483690 |
| Mfr Part # |
812.1-75-AVF |
| Country of Origin Country of Origin is subject to change | Italy |
Product Specifications Feedback
Compliance and Restrictions
View detailsFeatures and Benefits
Vertical acting toggle clamps GN 812.1 work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. They can be mounted in two planes via the dual flanged mounting base and require less space for the clamping action. U-bar version, with two flanged washers.
