De-Sta-Co

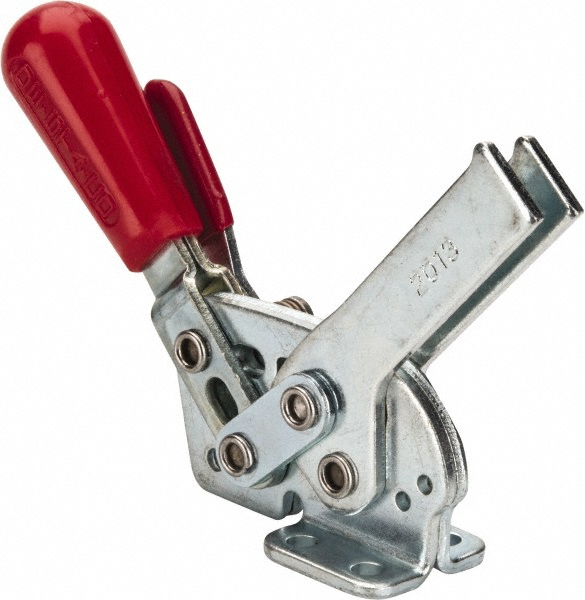

Manual Hold-Down Toggle Clamp: Horizontal, 295.00 lb Capacity, U-Bar, Flanged Base

58 deg Handle Movement, 71 deg Bar Opening, Carbon Steel

MSC# 01113182

Mfr# 2013-UR

Big Book Page# 1314

3D CAD Models

Product Image Feedback
Write the first review

Hassle Free Guarantee

We'll exchange or refund any product that doesn't meet your expectations.

Sign In For Your Best Price

Web Price

Sign in to your account to see your pricing, which may be different from the price displayed

$47.30 ea.

Total

$47.30

In Stock

Enter your zip code to get estimated delivery date

Invalid ZIP code
Disclaimer: Cart ZIP Code will not be changed

Specifications

Handle Orientation: Horizontal Bar Style: U-Bar
Base Style: Flanged Bar End Type: Fixed Spindle
Holding Capacity (N): 1310.00 Holding Capacity (Lb.): 295.00
Length Distance Between Mount Holes (mm): 13.46 Length Distance Between Mount Holes: 0.53 in; 13.46 mm
Length Distance Between Mount Holes (Inch): 0.53 Width Distance Between Mount Holes (mm): 17.78
Width Distance Between Mount Holes: 0.7 in; 17.78 mm Width Distance Between Mount Holes (Decimal Inch): 0.7000
Height Under Bar (Decimal Inch): 0.7500 Height Under Bar (mm): 19.05
Overall Length (mm): 149.1000 Overall Length (Decimal Inch): 5.8700
Overall Height (Decimal Inch): 2.0200 Overall Height (mm): 51.31000
Base Length (Inch): 1 Base Length (mm): 25.4000
Base Width (Inch): 1.0600 Base Width (mm): 26.92
Handle Style: Straight Material: Carbon Steel
Handle Material: Carbon Steel Handle Color: Red
Mounting Hole Diameter (Decimal Inch): 0.1700 Bar Opening (Degrees): 71
Handle Movement (Degrees): 58 Maximum Mechanical Advantage: 06:01; 04:01
Spindle Thread Size: M5x0.8 Spindle Length (mm): 34.00
Spindle Travel (Inch): 0.8300 Bar Width (Decimal Inch): 0.2100
Bar Thickness (mm): 2.54 UNSPSC Code: 31162902
Bar Thickness (Decimal Inch): 0.1000 Front Of Base To Toggle Tip: 1.65 in
Includes: (2) Nuts; (1) Spindle; (2) Washers Front of Base To Tip Of Toggle Bar (Decimal Inch): 1.6500
Front of Base To Tip Of Toggle Bar (mm): 41.91 Number Of Mounting Holes: 4.000
Finish Coating: Zinc
BRAND_LOGO
MSC# 01113182
Mfr#

2013-UR
Big Book# 1314
Product Specifications Feedback

Alternate Products

Frequently Viewed Together

Features and Benefits

Horizontal handles are designed with a handle that is parallel to the clamping bar and a lower height profile for better overhead clearance during operations. They are manufactured with holding capacities of up to 2,400 pounds.
