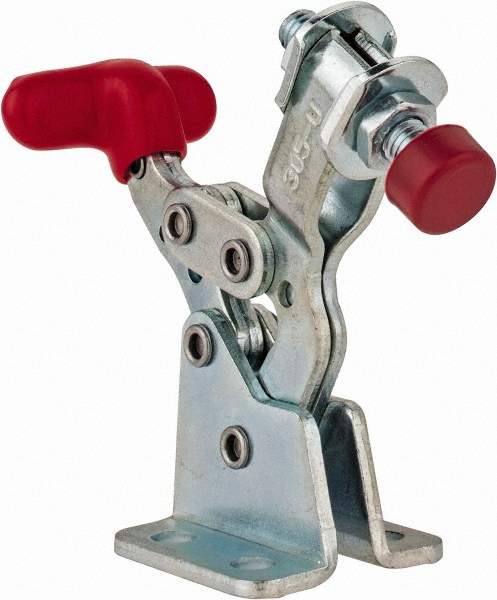

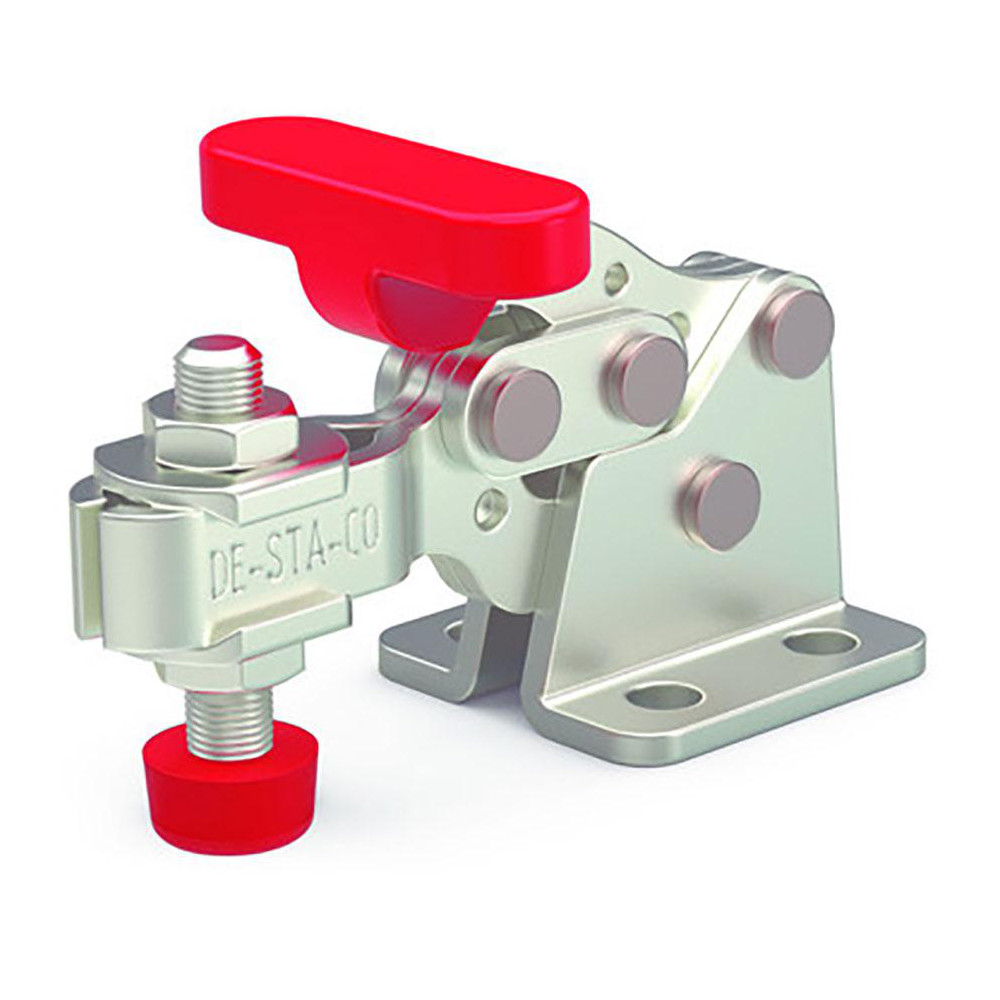

Name: Manual Hold-Down Toggle Clamp: Horizontal, 150.00 lb Capacity, U-Bar, Flanged Base
Brand: De-Sta-Co
SKU: 08096307
Price: 16.99 USD
Availability: In Stock

De-Sta-Co

Manual Hold-Down Toggle Clamp: Horizontal, 150.00 lb Capacity, U-Bar, Flanged Base

170 deg Handle Movement, 90 deg Bar Opening, Carbon Steel

MSC# 08096307

Mfr# 305-U

Big Book Page# 1314

3D CAD Models

Product Image Feedback

De-Sta-Co

Manual Hold-Down Toggle Clamp: Horizontal, 150.00 lb Capacity, U-Bar, Flanged Base

170 deg Handle Movement, 90 deg Bar Opening, Carbon Steel

MSC# 08096307

Mfr# 305-U

Big Book# 1314

Write the first review

Hassle Free Guarantee

We'll exchange or refund any product that doesn't meet your expectations.

Web Price

$16.99 ea.

Total

$16.99

Quantity

In Stock

Enter your zip code to get estimated delivery date

Enter ZIP Code Invalid ZIP code

Disclaimer: Cart ZIP Code will not be changed

Specifications

Horizontal	Handle Orientation: Horizontal	U-Bar	Bar Style: U-Bar
Flanged	Base Style: Flanged	Fixed Spindle	Bar End Type: Fixed Spindle
665.00	Holding Capacity (N): 665.00	150.00	Holding Capacity (Lb.): 150.00
13.46	Length Distance Between Mount Holes (mm): 13.46	0.53 in; 13.46 mm	Length Distance Between Mount Holes: 0.53 in; 13.46 mm
0.53	Length Distance Between Mount Holes (Inch): 0.53	16.00	Width Distance Between Mount Holes (mm): 16.00
0.63 in; 16 mm	Width Distance Between Mount Holes: 0.63 in; 16 mm	0.6300	Width Distance Between Mount Holes (Decimal Inch): 0.6300
0.4800	Height Under Bar (Decimal Inch): 0.4800	12.19	Height Under Bar (mm): 12.19
56.1300	Overall Length (mm): 56.1300	2.2100	Overall Length (Decimal Inch): 2.2100
1.4300	Overall Height (Decimal Inch): 1.4300	36.32000	Overall Height (mm): 36.32000
25.9100	Base Length (mm): 25.9100	1.0000	Base Width (Inch): 1.0000
25.40	Base Width (mm): 25.40	T-Handle	Handle Style: T-Handle
Carbon Steel	Material: Carbon Steel	Carbon Steel	Handle Material: Carbon Steel
Red	Handle Color: Red	4.57	Mounting Hole Diameter (mm): 4.57
0.1800	Mounting Hole Diameter (Decimal Inch): 0.1800	90	Bar Opening (Degrees): 90
170	Handle Movement (Degrees): 170	03:01; 02:01	Maximum Mechanical Advantage: 03:01; 02:01
M5x0.8	Spindle Thread Size: M5x0.8	29.00	Spindle Length (mm): 29.00
0.5000	Spindle Travel (Inch): 0.5000	12.70	Spindle Travel (mm): 12.70
7.87	Bar Width (mm): 7.87	0.3100	Bar Width (Decimal Inch): 0.3100
31162902	UNSPSC Code: 31162902	1.0600	Handle Width (Decimal Inch): 1.0600
1.19 in	Front Of Base To Toggle Tip: 1.19 in	(2) Nuts; (1) Spindle; (2) Washers	Includes: (2) Nuts; (1) Spindle; (2) Washers
1.1900	Front of Base To Tip Of Toggle Bar (Decimal Inch): 1.1900	30.23	Front of Base To Tip Of Toggle Bar (mm): 30.23
4.000	Number Of Mounting Holes: 4.000	Zinc	Finish Coating: Zinc


MSC#	08096307
Mfr#	305-U
Big Book#	1314

Product Specifications Feedback

Alternate Products

Frequently Viewed Together

Documents

Unclassified

View

PDF, 2.82 MB

Spec

View

PDF, 165.46 KB

Features and Benefits

Horizontal handles are designed with a handle that is parallel to the clamping bar and a lower height profile for better overhead clearance during operations. They are manufactured with holding capacities of up to 2,400 pounds.
