De-Sta-Co

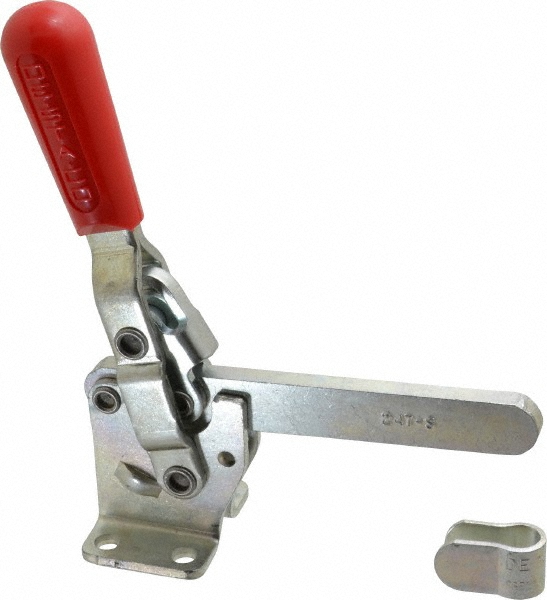

Manual Hold-Down Toggle Clamp: Vertical, 1000.00 lb Capacity, Solid Bar, Flanged Base

67 deg Handle Movement, 120 deg Bar Opening, Carbon Steel

MSC# 76988989

Mfr# 247-S

Big Book Page# 1311

3D CAD Models


Product Image Feedback

Hassle Free Guarantee

We'll exchange or refund any product that doesn't meet your expectations.

Web Price

Sign in to your account to see your pricing, which may be different from the price displayed

$65.12 ea.

Total

$65.12

In Stock


Enter your zip code to get estimated delivery date

Invalid ZIP code
Disclaimer: Cart ZIP Code will not be changed

Specifications

Handle Orientation: Vertical Bar Style: Solid
Base Style: Flanged Bar End Type: Closed
Holding Capacity (N): 4450.00 Holding Capacity (Lb.): 1000.00
Length Distance Between Mount Holes (mm): 32.00 Length Distance Between Mount Holes: 32 mm; 1.26 in
Length Distance Between Mount Holes (Inch): 1.26 Width Distance Between Mount Holes (mm): 44.96
Width Distance Between Mount Holes: 1.77 in; 44.96 mm Width Distance Between Mount Holes (Decimal Inch): 1.7700
Height Under Bar (Decimal Inch): 1.9800 Height Under Bar (mm): 50.29
Overall Length (mm): 174.7500 Overall Length (Decimal Inch): 6.8800
Overall Height (Decimal Inch): 8.8600 Overall Height (mm): 225.04000
Base Length (mm): 50.8000 Base Width (Inch): 2.5200
Base Width (mm): 64.01 Handle Style: Straight
Material: Carbon Steel Handle Material: Carbon Steel
Handle Color: Red Mounting Hole Diameter (mm): 8.89
Mounting Hole Diameter (Decimal Inch): 0.3500 Bar Opening (Degrees): 120
Handle Movement (Degrees): 67 Maximum Mechanical Advantage: 10:01; 05:01
Spindle Thread Size: M12x1.75 Bar Width (mm): 22.10
Bar Width (Decimal Inch): 0.8700 Bar Thickness (mm): 9.65
UNSPSC Code: 31162902 Bar Thickness (Decimal Inch): 0.3800
Front Of Base To Toggle Tip: 4.88 in Includes: Bolt Retainer
Front of Base To Tip Of Toggle Bar (Decimal Inch): 4.8800 Front of Base To Tip Of Toggle Bar (mm): 123.95
Number Of Mounting Holes: 4.000 Finish Coating: Zinc
BRAND_LOGO
MSC# 76988989
Mfr#

247-S

Big Book# 1311
Product Specifications Feedback
Frequently Viewed Together

Documents

Unclassified

View

PDF, 2.82 MB

Spec

View

PDF, 280.03 KB

Features and Benefits

Vertical handles are designed with a handle that is 90 degrees, or perpendicular to the clamping bar. They are manufactured with holding capacities of up to 6,000 pounds.
